Pedal stop adjustment

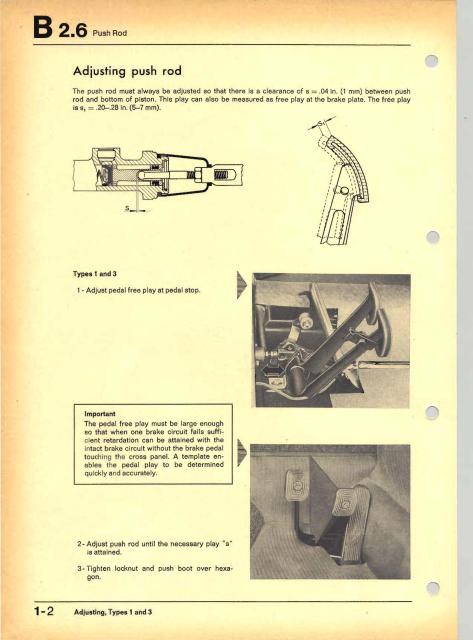

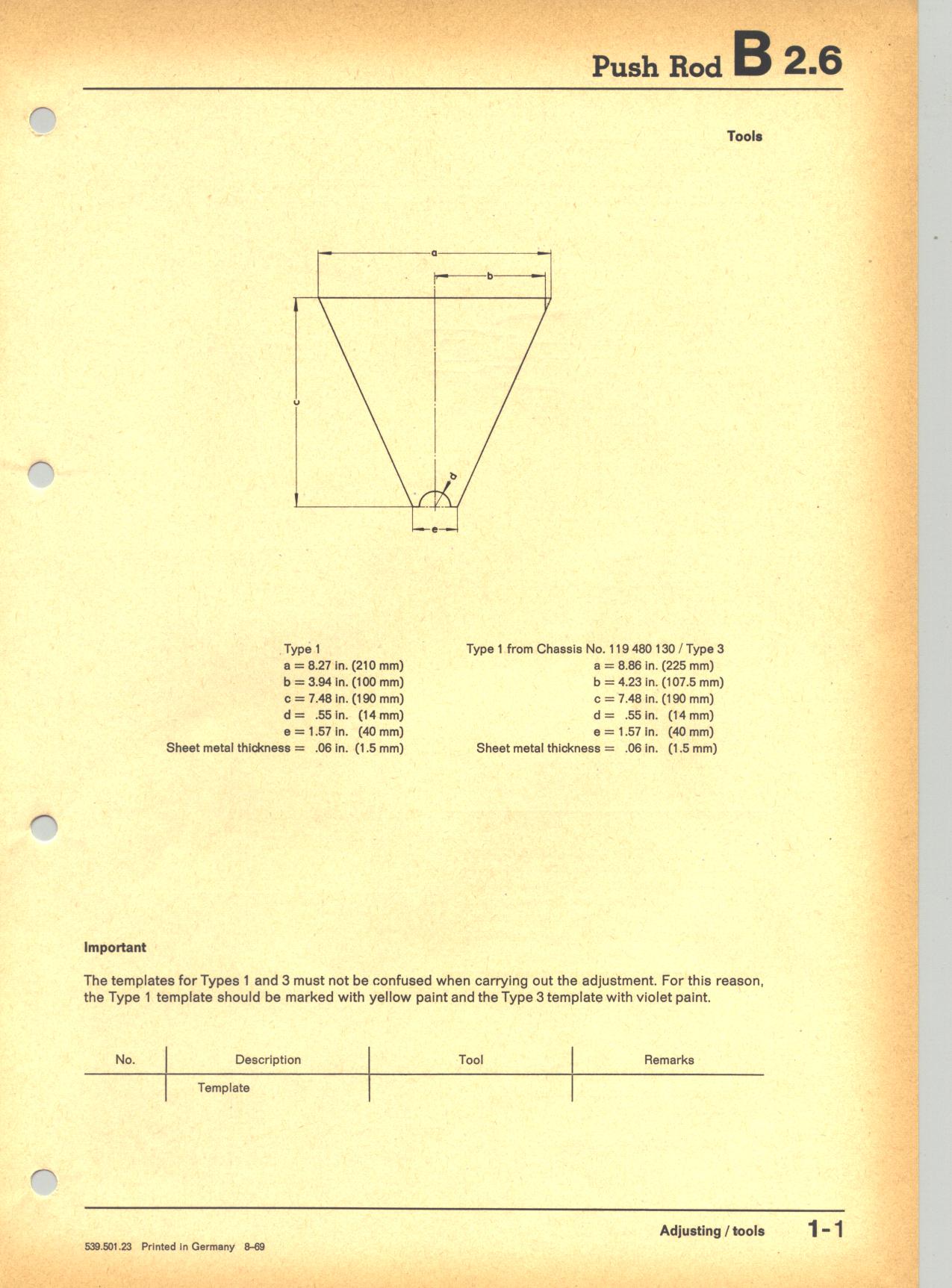

These two pages describe how to adjust the little plate behind the pedals. I mean the pedal stop that keeps the pedals from falling forward. Look closely at the bottom picture of the first page, you will see a gray triangle behind the brake pedal. That triangle is the template that’s described in the second page. I made one out of a thin sheet of wood. It will tell you the right angle for the brake pedal.



(click on it for a bigger version)
